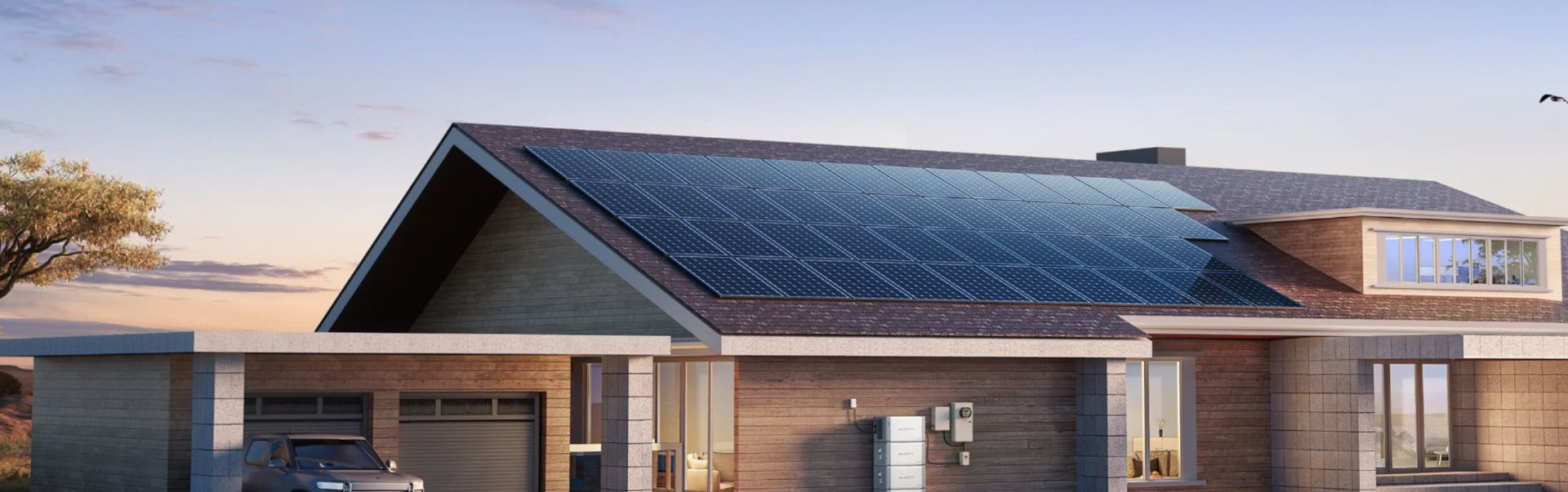

Residential Rooftop
Mainstream Modules

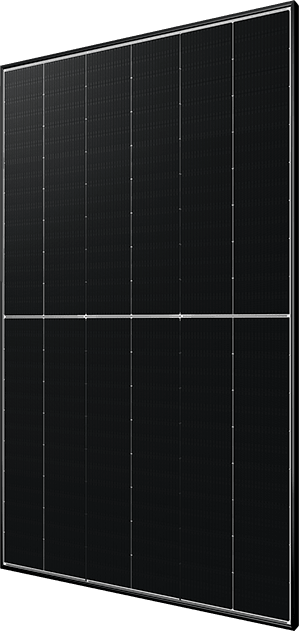

TNC2.0 G12R 48HW

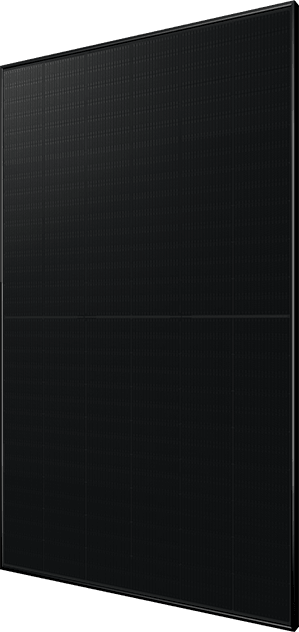

TNC2.0 G12R 48HE
TNC2.0 G12R 48HD
-
N-type Half-cell Monofacial Dual Glass Black Frame Module(48)· Pmax 480W· For Residential
Electrical Parameters at STC
| Maximum power: Pmax [W] | 460 | 465 | 470 | 475 | 480 |
|---|---|---|---|---|---|
| Open-circuit voltage: Voc [V] | 36.25 | 36.40 | 36.55 | 36.70 | 36.80 |
| Short-circuit current: lsc [A] | 15.89 | 15.92 | 15.95 | 15.97 | 15.98 |
| Voltage at maximum power point: Vmp [V] | 30.31 | 30.56 | 30.80 | 31.05 | 31.20 |
| Current at maximum power point: lmp [A] | 15.18 | 15.22 | 15.26 | 15.30 | 15.39 |
| Module efficiency: n [%] | 23.0 | 23.3 | 23.5 | 23.8 | 24.0 |
Mechanical Parameters
| Cell Type | TNC |
|---|---|
| Cell Orientation | 96 pcs [6X16] |
| Module Size | 1762±2×1134±2×30mm |
| Module Weight | 22.8kg |
| Front Glass | 2.0mm AR coating semi tempered glass |
| Rear Glass | 2.0mm semi tempered glass |
| Module Frame | Anodized aluminum alloy black frame |
| Junction Box | IP68, 3 diodes |
| Cable | 4.0mm² |
| Cable length | +1200mm, -1200mm |
| Max static test load | 2400Pa(rear)/5400Pa(front) |
| Per Pallet | 36 pcs |
| Packaging | 936pcs per 40'HC |
Temperature Parameters
| Temperature coefficient of power (Pmax) | -0.28%/℃ |
|---|---|
| Temperature coefficient of power (Voc) | -0.24%/℃ |
| Temperature coefficient of power (lsc) | +0.046%/℃ |
